Product parameters:

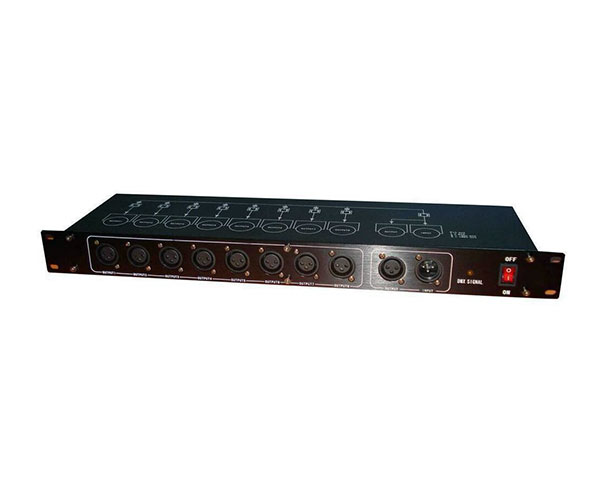

Model: SC-F8
Input / output opto-isolated
8 independent amplification drive output
Signal amplification shaping function, to extend the signal transmission distance
The ability to enhance the number of data bus access devices

Protection light console DMX512 output interface, fault site isolation,

 improve the digital lighting control system safe operation reliability.

Technical Parameters
Power: 100-240V 50-60Hz
Power cord: 3 * 0.75mm European standard plug
Wide voltage input, to adapt to different countries of the voltage input
Output: DMX512 / 1990 signal
Dimensions: 317mm × 150mm × 75mm
Weight: 1.6kg
Features
1 out of 8 out
All the way the signal input, the input link in the silicon road in the principle of priority
Effectively improve the DMX signal transmission fidelity
Effectively improve the DMX signal anti-jamming capability
DMX signal using optical isolation technology
